Order quantity: 2
Payment method: T / T PayPal
Delivery time: ≤ 30 days
Product introduction:

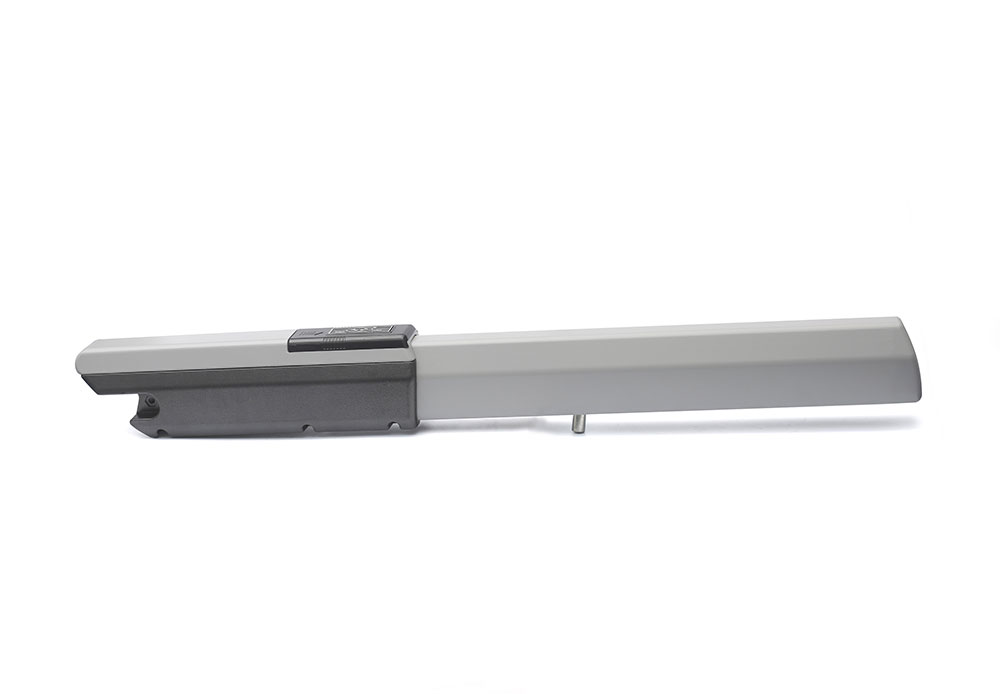

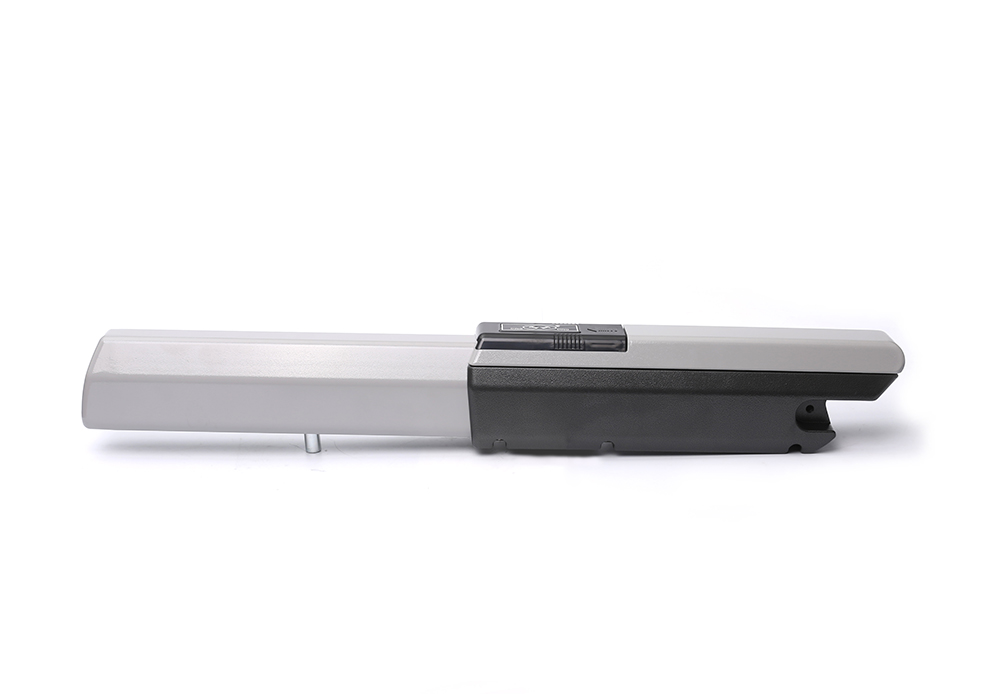

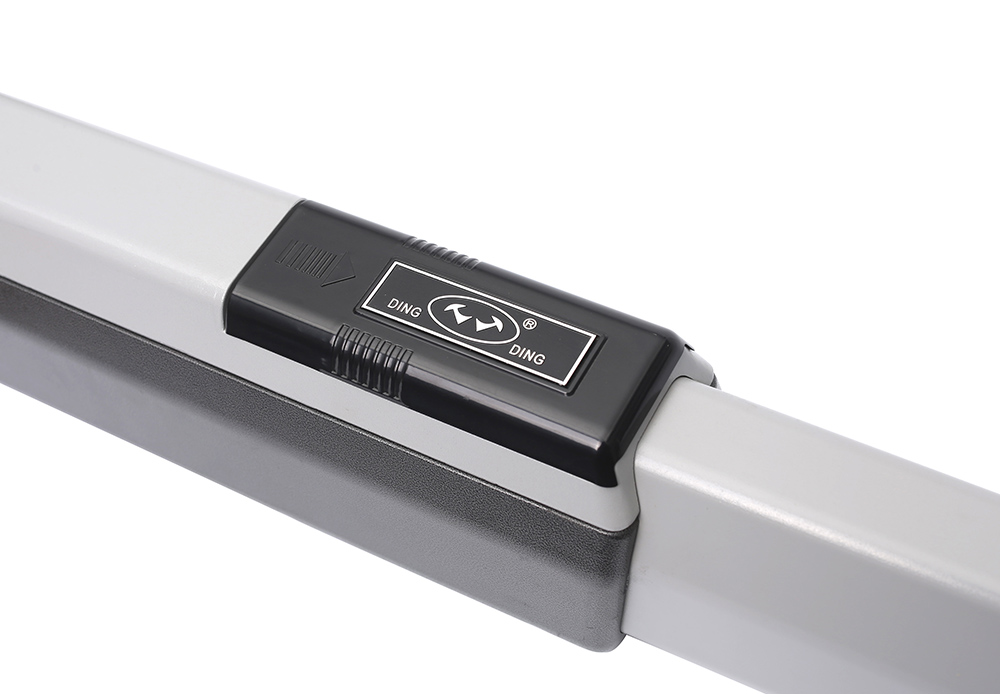

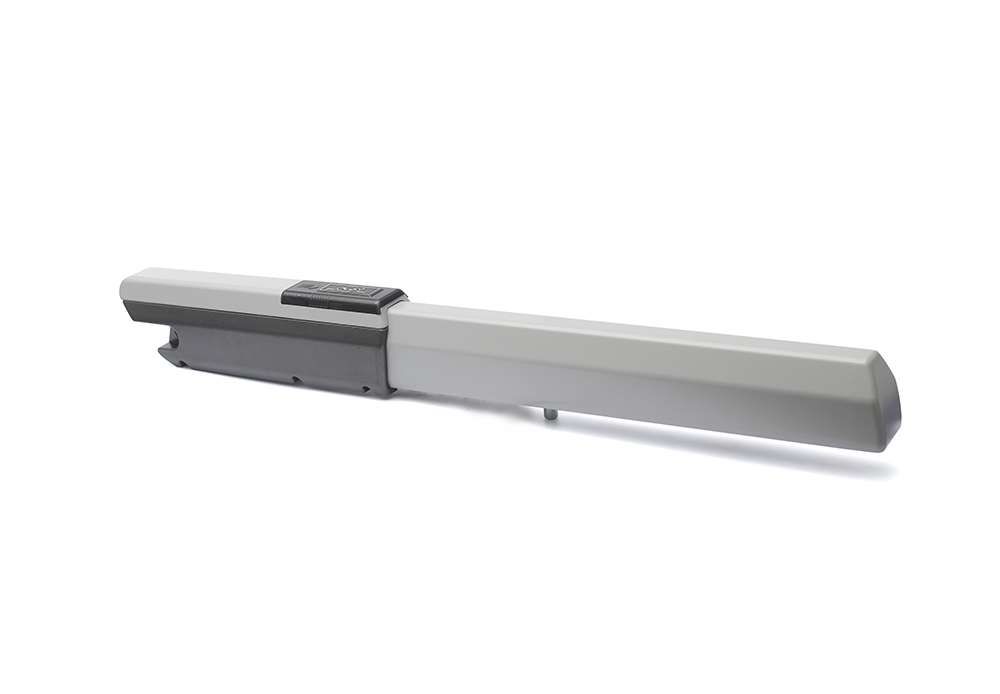

1. The mechanical screw rod rotates with stable performance.
2. Mechanical limit, convenient adjustment, safe and reliable.
3. External control box.
4. Single and double door control can be selected.
5. Brushless motor optional.
5. In case of power failure, the clutch can be released and the door can be opened manually.
| technical parameter | ||||
| model | LS-III-I | LS-III-II | LS-III-I-24V | LS-III-II-24V |
| Power Supply | AC 120V/230V | AC 120V/230V | DC 24V | DC 24V |
| power | 150 W | 150 W | 100 W | 100 W |
| Maximum door width | 3 m | 5 m | 3 m | 5 m |
| Opening time | 17 sec | 17 sec | 10 sec | 10 sec |
| Limit switch | Spring / magnetic (N.O. / N.C.) | Spring / magnetic (N.O. / N.C.) | Spring / magnetic (N.O. / N.C.) | Spring / magnetic (N.O. / N.C.) |
| noise | ≤ 56 dB | ≤ 56 dB | ≤ 56 dB | ≤ 56 dB |
| working temperature | -40℃- +65℃ | -40℃- +65℃ | -40℃- +65℃ | -40℃- +65℃ |
| Degree of protection | IP44 | IP44 | IP44 | IP44 |
| authentication | CCC，CE | CCC，CE | CCC，CE | CCC，CE |
Hangzhou Fuyang Taomen Gate Operators Co.,Ltd.
