Order quantity: 2
Payment method: T / T PayPal
Delivery time: ≤ 30 days

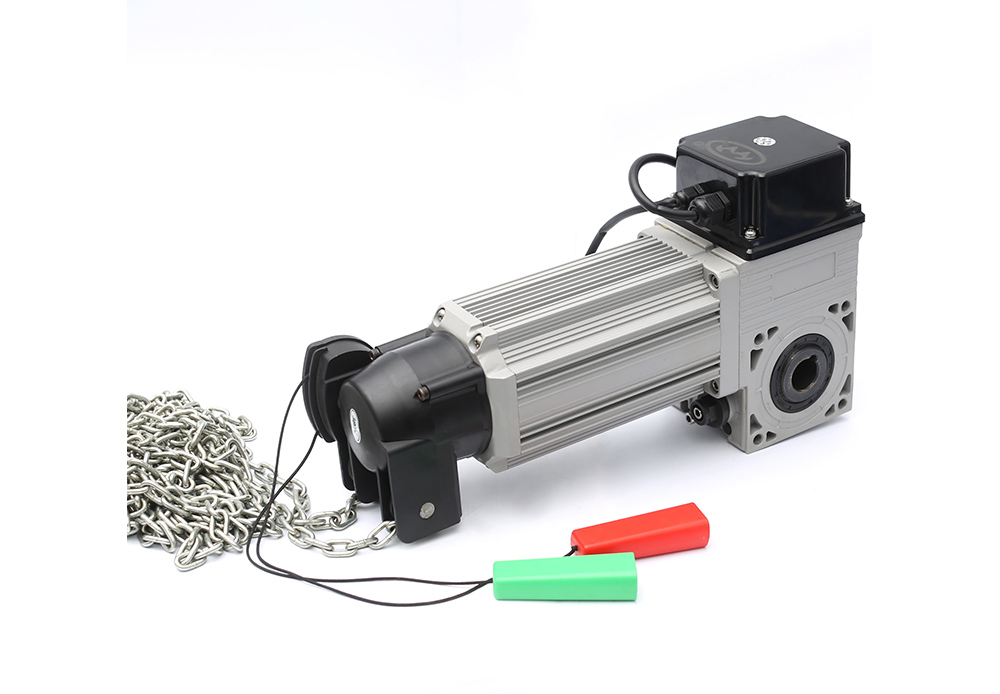

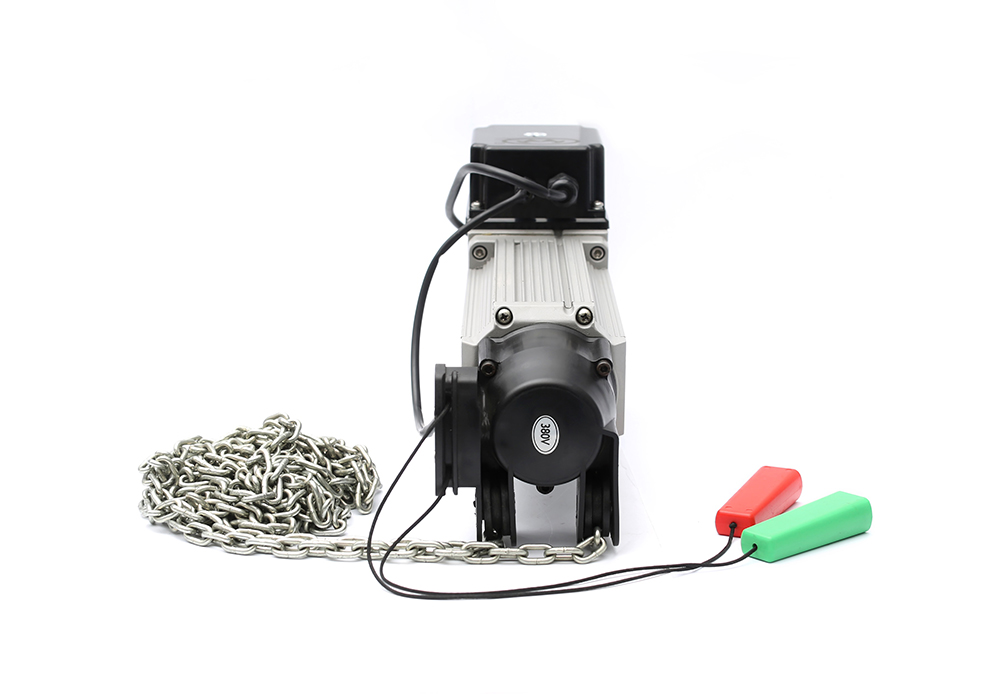

Product introduction:
1. The products are used in large factories or warehouses.
2. Advanced limit switch adjustment design, more accurate.
3. Low noise and good waterproof.
4. It is easy to install. In case of power failure, open the clutch and manually open and close the door.
| technical parameter | ||
| model | LS-GY-50NM | LS-GY-100NM |
| Output torque | 50 NM | 100 NM |
| Output shaft speed | 20 RPM | 20 RPM |
| input voltage | 230V 50Hz | 380V 50HzDC 24V |
| power | 450 W | 550 W |
| capacitance | 30 uF | |
| Liftgate area | 15-20 ㎡ | 25-30 ㎡ |
| Liftgate weight | 80 kg | 120 kg |
| working temperature | -45℃- +55℃ | -45℃- +55℃ |
| Degree of protection | IP54 | IP54 |
| certificate | CCC，CE | CCC，CE |
Hangzhou Fuyang Taomen Gate Operators Co.,Ltd.
