Order quantity: 2
Payment method: T / T PayPal
Delivery time: ≤ 30 days

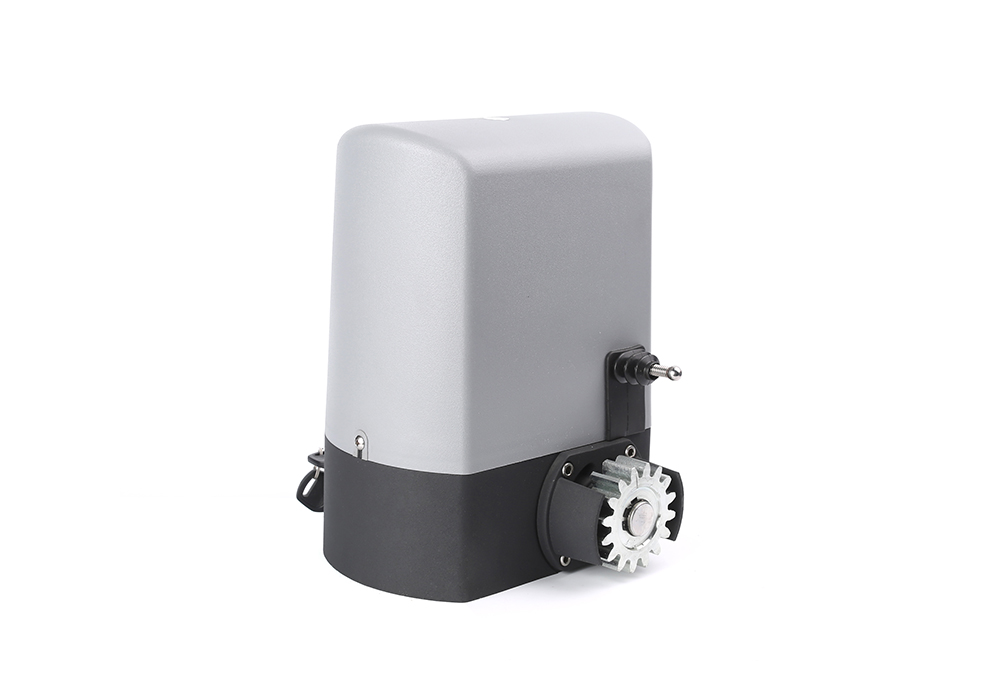

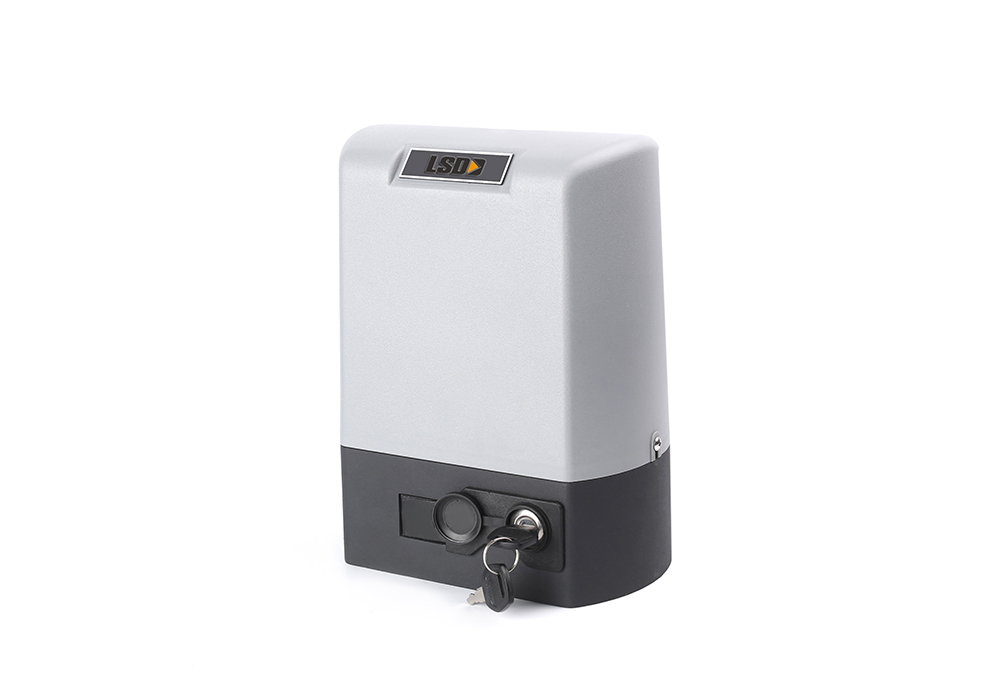

Product introduction:
1. It contains overheating protector. When the motor temperature reaches the rated value, it will automatically cut off the power to protect the motor.
2. The gear is protected by end cover, which is more safe and reliable.
3. The turbine and worm rotate smoothly.
4. AC 230V, 800kg fast translation gantry crane, speed up to 19m / min.
5. The installation is convenient. In case of power failure, the clutch can be opened and the door can be opened manually.
| technical parameter | |||
| model | LSJJ-16 | LSJJ-18 | LSJJ-21 |
| Power Supply | AC 230V 50Hz(AC 120V 60Hz) | AC 230V 50Hz(AC 120V 60Hz) | AC 230V 50Hz(AC 120V 60Hz) |
| torque | 12N.m | 22N.m | 27N.m |
| Maximum door weight | 500 KG | 800 KG | 1000 KG |
| motor speed | 1400r/min | 1400r/min | 1400r/min |
| Gate speed | 12 m/min | 12 m/min | 12 m/min |
| Limit switch | Spring / magnetic (N.O. / N.C.) | Spring / magnetic (N.O. / N.C.) | Spring / magnetic (N.O. / N.C.) |
| Noise | ≤ 56 Decibel | ≤ 56 Decibel | ≤ 56 Decibel |
| working temperature | -40℃- +65℃ | -40℃- +65℃ | -40℃- +65℃ |
| Degree of protection | IP44 | IP44 | IP44 |
| authentication | CCC，CE | CCC，CE | CCC，CE |
