Order quantity: 2
Payment method: T / T PayPal
Delivery time: ≤ 30 days

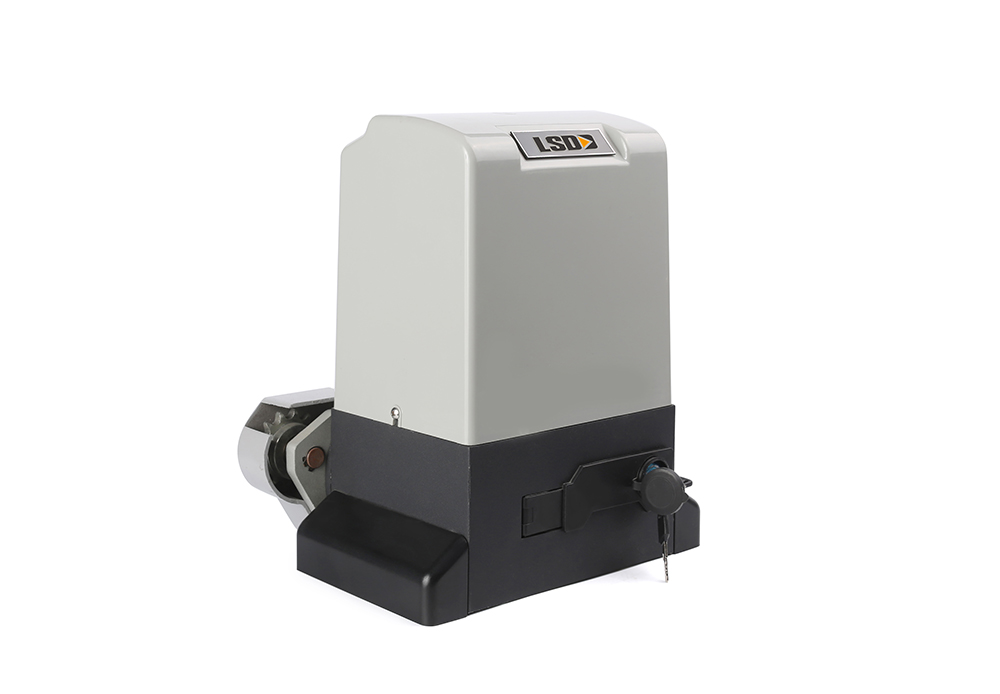

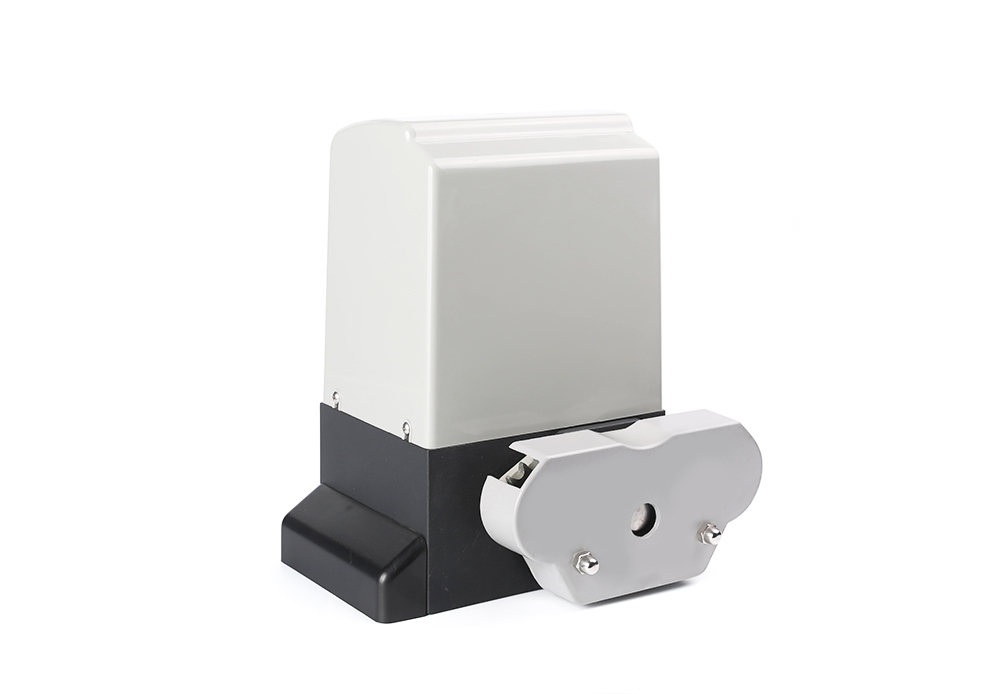

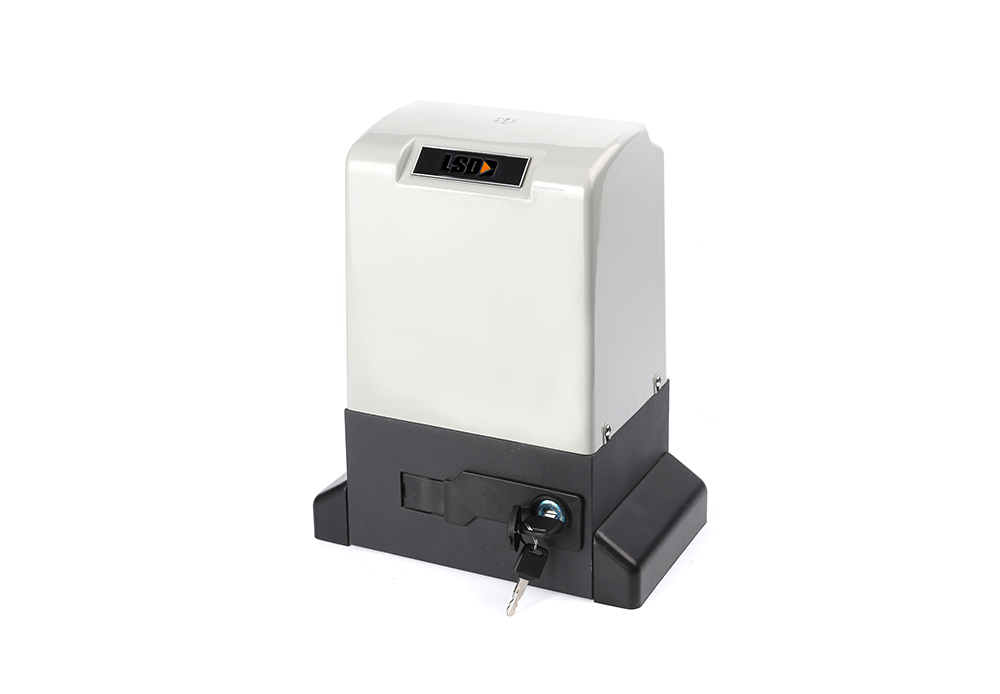

Product introduction:
1. The built-in overheating protector will cut off the power supply when the motor temperature reaches the rated value.
2. Turbine and screw device, stable transmission.
3. Easy to install. After turning off the power, use the clutch to open the door.
4. Thermal protection of built-in motor winding.
5. The gear has a protective device, which is safer.
6. The driving device is composed of turbine and worm and works stably.
7. Easy to assemble. In case of power failure, the door can be opened and closed manually after releasing the clutch.
| technical parameter | ||||
| model | LSJJ-22 | LSJJ-35 | LSJJ-38 | LSJJ-45 |
| Power Supply | AC 230V 50Hz(AC 120V 60Hz) | AC 230V 50Hz(AC 120V 60Hz) | AC 230V 50Hz(AC 120V 60Hz) | AC 230V 50Hz(AC 120V 60Hz) |
| Output torque | 27N.m | 35N.m | 38N.m | 45N.m |
| Maximum door weight | 1000 KG | 1200 KG | 1500 KG | 2000 KG |
| motor speed | 1400r/min | 1400r/min | 1400r/min | 1400r/min |
| Gate speed | 12 m/min | 12 m/min | 12 m/min | 12 m/min |
| Limit switch | Spring / magnetic (N.O. / N.C.) | Spring / magnetic (N.O. / N.C.) | Spring / magnetic (N.O. / N.C.) | Spring / magnetic (N.O. / N.C.) |
| noise | ≤ 56 Decibel | ≤ 56 Decibel | ≤ 56 Decibel | ≤ 56 Decibel |
| working temperature | -40℃- +65℃ | -40℃- +65℃ | -40℃- +65℃ | -40℃- +65℃ |
| Degree of protection | IP44 | IP44 | IP44 | IP44 |
| authentication | CCC，CE | CCC，CE | CCC,CE | CCC,CE |
Hangzhou Fuyang Taomen Gate Operators Co.,Ltd.
