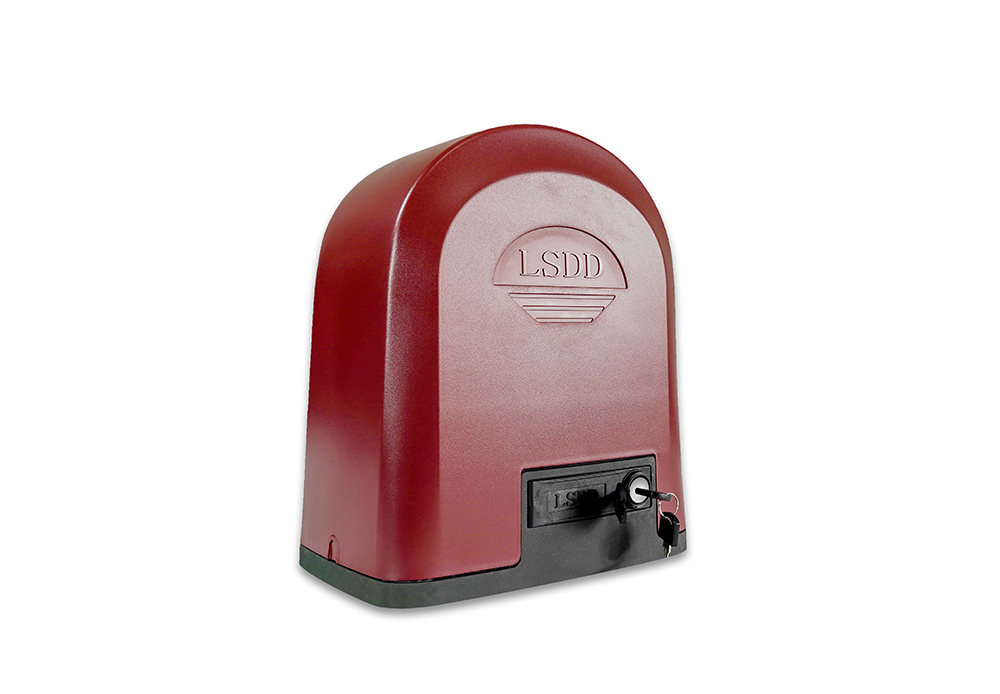

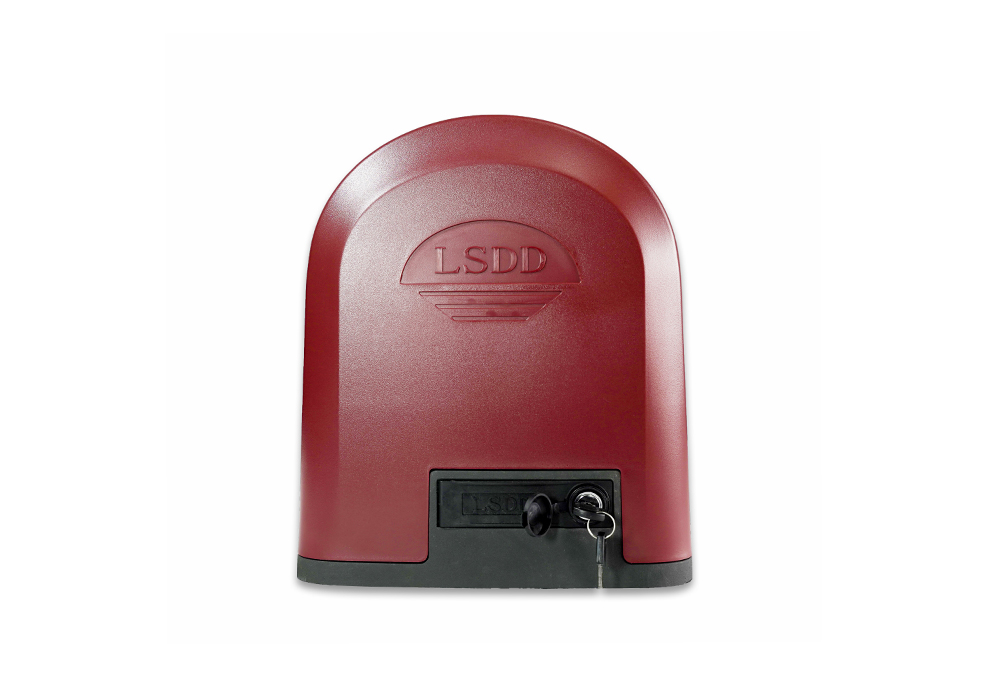

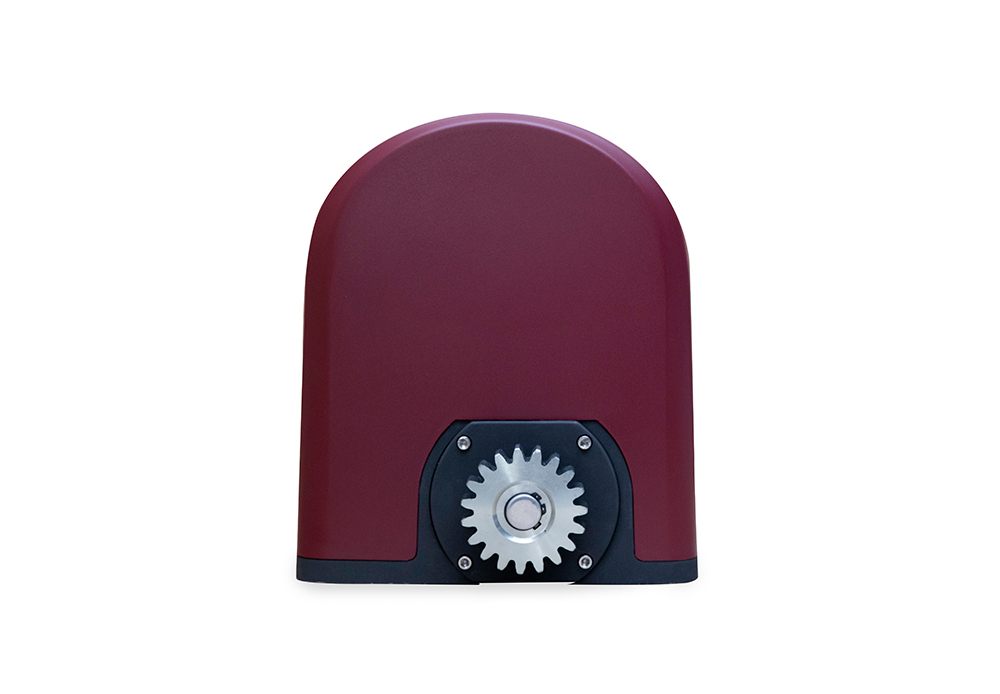

Sliding door opener500KG1000KG

Product Name: Sliding door opener500KG1000KG

Category: Sliding door opener

Order quantity: 2

Payment method: T / T PayPal

Delivery time: ≤ 30 days



Product introduction:

1. It contains overheating protector. When the motor temperature reaches the rated value, it will automatically cut off the power to protect the motor

2. The gear is protected by end cover, which is more safe and reliable.

3. The mouth turbine and worm drive mechanism can drive stably.

4. AC230V, 800kg fast translation gantry crane, speed up to 19m / min

5. It is easy to install. In case of power failure, the clutch can be opened and the door can be opened manually

6. Nylon worm gear is used, and the noise is lower than 52dB

7. Speed recording motor, accurate positioning

8. Special clutch for easy separation without jamming

9. Waterproof motor, long continuous operation time


2+
views:214

Sliding door opener500KG1000KG Details

technical parameter
modelLSDD-16LSDD-18LSDD-21
Power SupplyAC 230V 50Hz(AC 120V 60Hz)AC 230V 50Hz(AC 120V 60Hz)AC 230V 50Hz(AC 120V 60Hz)
torque12N.m22N.m27N.m
Maximum door weight500 KG800 KG1000 KG
motor speed1400r/min1400r/min1400r/min
Gate speed12 m/min12 m/min12 m/min
Limit switch

Spring/Magnetic(NC/NO)

Spring / magnetic (N.O. / N.C.)

Spring/Magnetic(NC/NO)

Spring / magnetic (N.O. / N.C.)

Spring / Magnetic(NC/NO)

Spring / magnetic (N.O. / N.C.)

Noise≤ 56 dB≤ 56 dB≤ 56 dB
working temperature-40℃- +65℃-40℃- +65℃-40℃- +65℃
Degree of protectionIP44IP44IP44
authenticationCCC,CECCC,CECCC,CE
