Order quantity: 2
Payment method: T / T PayPal
Delivery time: ≤ 30 days
Product introduction:
1. It contains overheating protector. When the motor temperature reaches the rated value, it will automatically cut off the power to protect the motor.

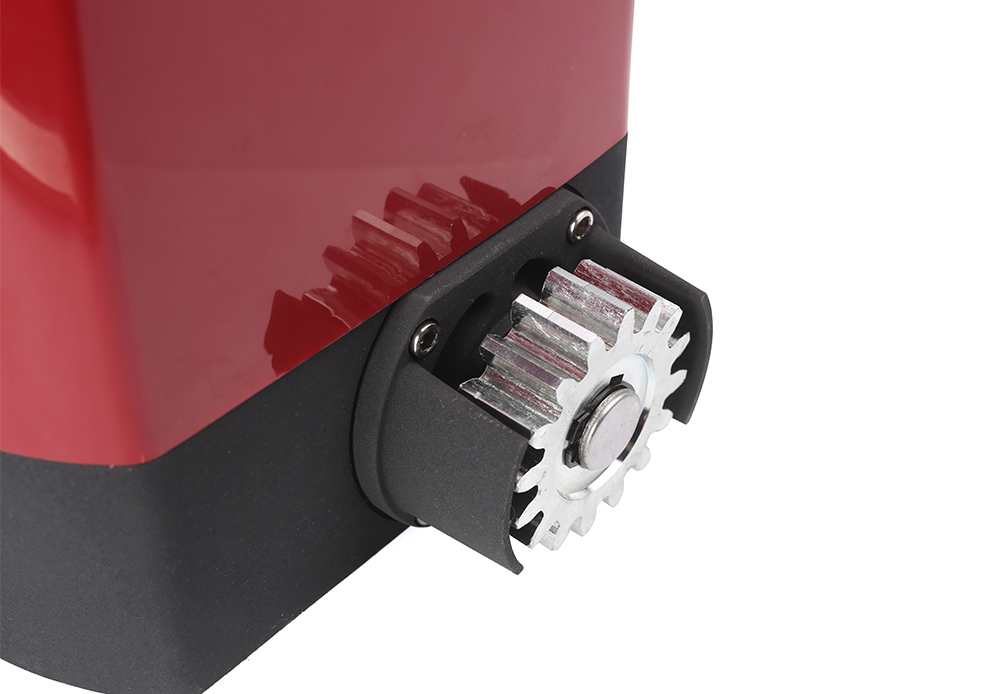

2. The gear is protected by end cover, which is more safe and reliable.
3. The turbine and worm rotating mechanism rotates smoothly.
4. It is easy to install. In case of power failure, the clutch can be opened and the door can be opened manually.
| technical parameter | |||
| model | LSJJ-15 | LSJJ-15-II | LSJJ-15-24V |
| Power Supply | AC 230V 50Hz(AC 120V 60Hz) | AC 230V 50Hz(AC 120V 60Hz) | DC 24V(120V/230V) |
| torque | 7N.m | 20N.m | 7N.m |
| Maximum door weight | 300 KG | 500 KG | 300 KG |
| motor speed | 1400r/min | 1400r/min | 1400r/min |
| Gate speed | 10 m/min | 10 m/min | 10 m/min |
| Limit switch | Spring / magnetic (N.O. / N.C.) | Spring / magnetic (N.O. / N.C.) | Spring / magnetic (N.O. / N.C.) |
| noise | ≤ 56 dB | ≤ 56 dB | ≤ 56 dB |
| working temperature | -40℃- +65℃ | -40℃- +65℃ | -40℃- +65℃ |
| Degree of protection | IP44 | IP44 | IP44 |
| authentication | CCC，CE | CCC，CE | CCC，CE |
Hangzhou Fuyang Taomen Gate Operators Co.,Ltd.
