Product introduction:

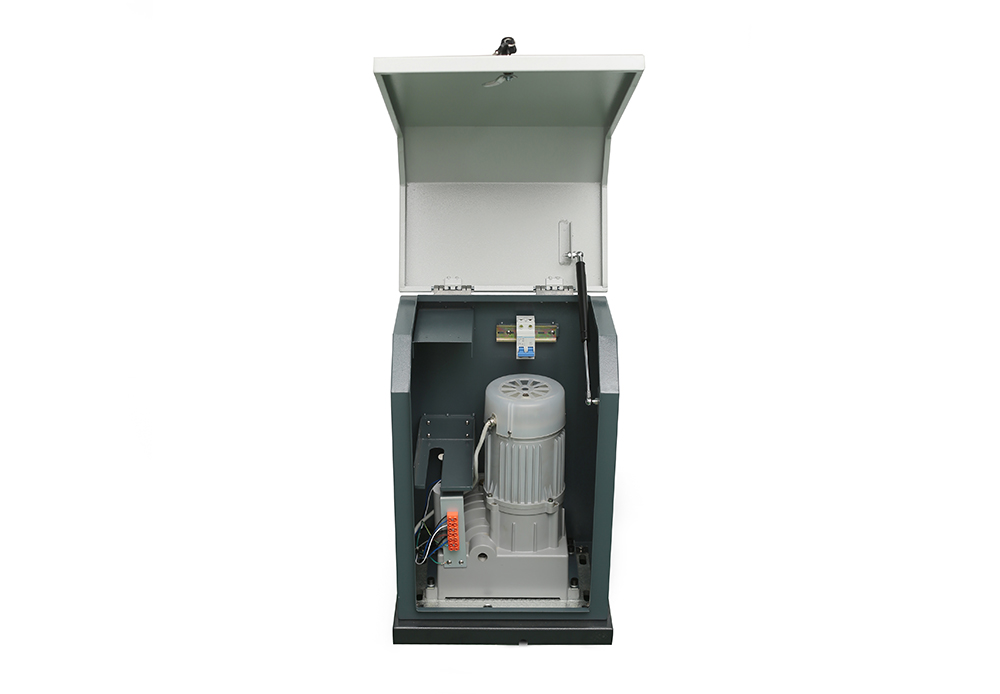

1. The product is oil immersed motor with built-in fan.
2. It contains overheating protector. When the motor temperature reaches the rated value, the motor will automatically cut off power.
3. Copper turbine drive, and the vortex rod is specially treated to reduce noise.
4. It can operate continuously for 2-3 hours.
5. It is easy to install. In case of power failure, open the clutch and manually open and close the door.
(including frequency converter, the door speed can be adjusted as required)
| technical parameter | |||
| model | LS-3000 | LS-5000 | LS-6000 |
| Voltage | AC 230V/120v | AC 380V | AC 380v |
| power | 1200w | 1500w | 2200w |
| Output torque | 170N.m | 220N.m | 280N.m |
| Maximum door weight | 3000 KG | 5000 KG | 6000 KG |
| Output shaft speed | 45.16 MRP | 45.16 MRP | 45.16 MRP |
| Gate speed | 25.5 m/sec | 25.5 m/sec | 25.5 m/sec |
| Time limit switch | Mechanical limit | Mechanical limit | Mechanical limit |
| Gear module | M6 | M6 | M6 |
| Thermal protection temperature | 130 ℃ | 130 ℃ | 130 ℃ |
| working temperature | -40℃- +55℃ | -40℃- +55℃ | -40℃- +55℃ |
| Degree of protection | IP54 | IP54 | IP54 |
| authentication | CCC，CE | CCC，CE | CCC，CE |
